Description

The Aegis Boost SE Pod Mod by GeekVape is a Child Resistant Certified (CRC) version of the original hybrid device featuring versatility, portability, and military grade durability. Stylish, compact, and easy to use, the Aegis Boost SE is an ideal starter kit for new vapers to enjoy nicotine salts or freebase e-liquids with mouth to lung or direct to lung draw resistance, with quality and options experienced vapers will appreciate.

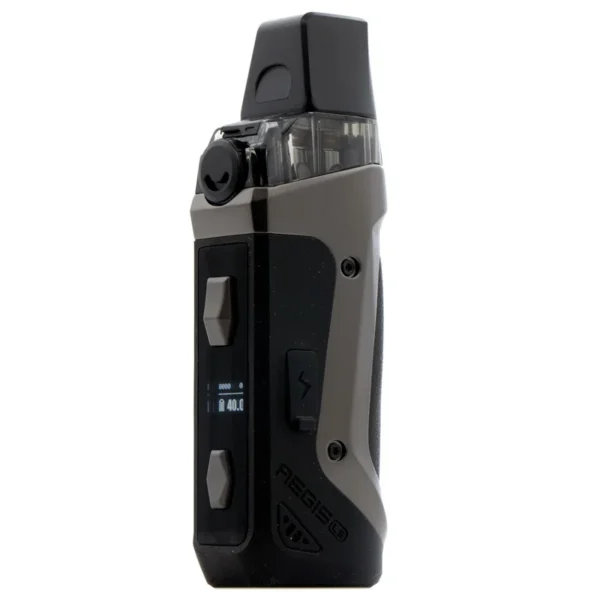

The Aegis Boost SE device is identical to the original release with an ergonomic IP67 waterproof, shockproof, and dustproof body featuring a comfortable curved back with a stitched leather inlay panel. The 1500mAh internal cell charges at 1.5A via micro USB, and the AS chipset delivers 5 – 40W of power to atomizers in the resistance range of 0.2Ω – 3.0Ω, with under 0.08s response time. The device has a triple button interface with a responsive firing button, and a 0.42″ clearly displays the settings. (operating instructions below)

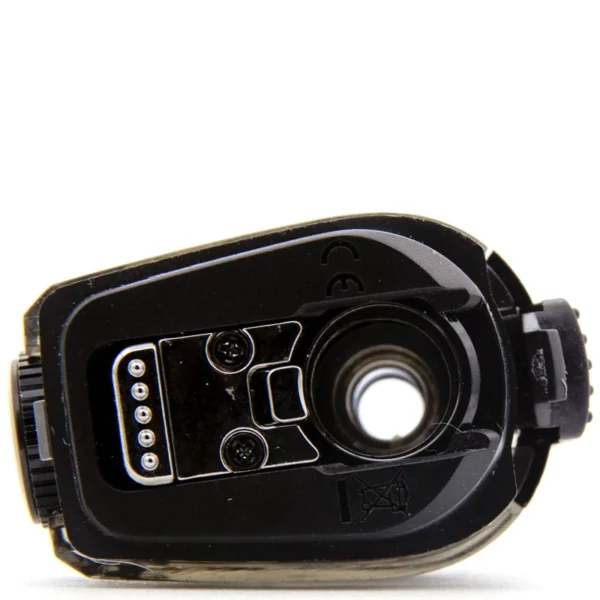

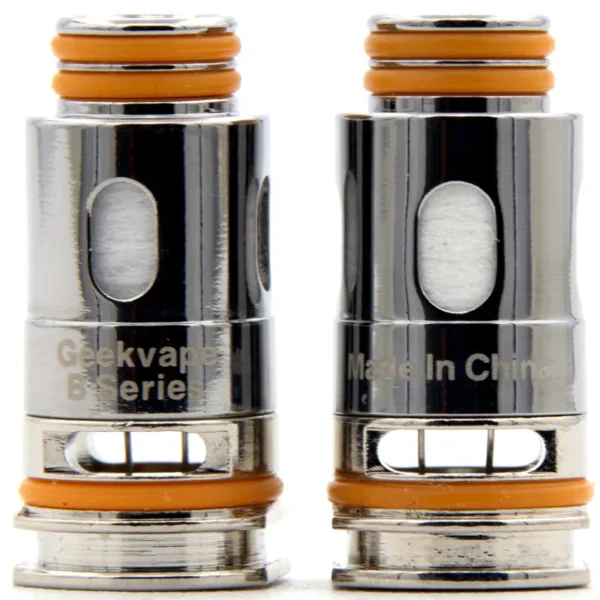

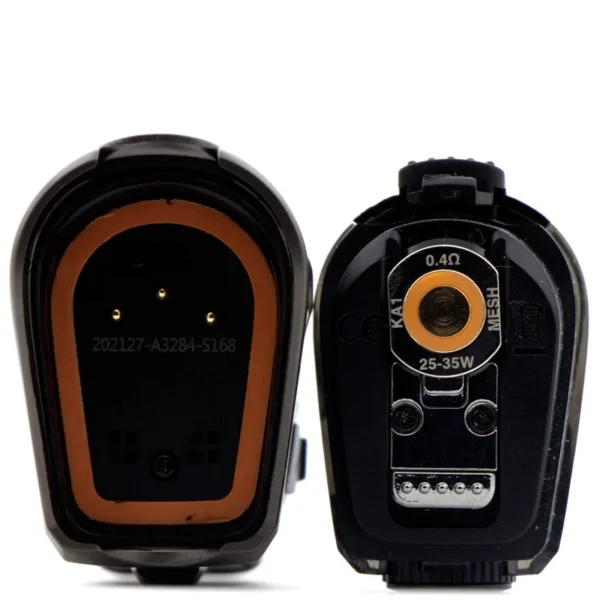

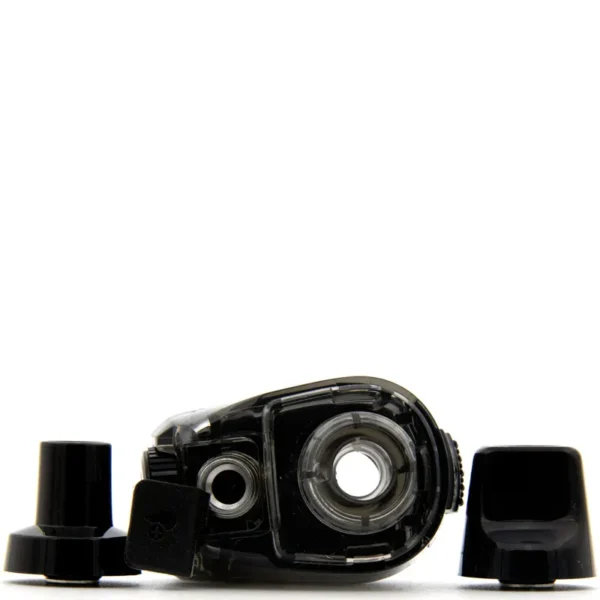

The Aegis Boost SE is a hybrid pod system with a secure clip in connection that includes a single refillable pod, and is compatible with RDTA top sold separately (not included). The Aegis Boost SE pod has a new spring loaded top fill port that prevents leaks and spills, with a capacity for 3.7mL of e-liquid. A front side rotating airflow allows you to adjust the draw resistance between MTL and restrictive DTL, and the release button is on the back side. The pod has a removable whistle shaped drip tip with a protective clip on cover, and a circular tapered drip tip is included. The Aegis Boost SE pod is compatible with B Series coils that press fit into the base, with a lock that securely holds the atomizer in place. The pod has a B0.4 KA1 mesh 0.4Ω coil rated for 25 – 35W pre-installed, and a B0.6 KA1 mesh 0.6Ω coil (15 – 25W) is included.

Features:

• Dimensions:106.8mm x 27.7mm x 39.2mm
• Weight: 120g
• Battery Capacity: 1500mAh
• Resistance Range: 0.2 – 3.0Ω
• Input Voltage Range: 3 – 4.25V
• Output Wattage Range: 5 – 40W
• Output Voltage Range: 1 – 6V
• Charging Voltage: 5V
• Charging Current: 1.5A
• AS Chipset
• Rapid Firing:

Includes:

• Aegis Boost Device
  • Boost SE Pod (pre-installed)
• GeekVape B0.4 Coil (25 – 35W)
• GeekVape B0.6 Coil (15 – 25W)
• Coil Tool
• Micro USB Cable
• User Manual

Instructions:

• Turn On/Off:
  • Rapidly press the fire button 5 times within 2s.
• Power Adjustment:
  • Press the up/down button to adjust the power in 0.5W increments.
  • Hold the up/down button for 1s to enter quick adjustment in 1W increments.
  • Quick adjustment stops automatically after reaching the min/max power.
  • Increasing output at max power restarts at min power.
  • Decreasing output at min power restarts at max power.
• Puff Settings:
  • With the device unlocked, press and hold the fire button and down button to enter puff settings mode.
    • Press down to clear puffs. Press up to cancel.
    • Press and hold the fire button 0.8s to exit.
  • Device automatically exits puff settings mode after 5s of inactivity.
• Lock & Unlock:
  • Press and hold the up and down buttons for 2s to lock parameter adjustments.
  • While parameters locked, rapidly press the fire button 3 times within 2s to lock/unlock the fire button.
  • While locked, press and hold the up and down buttons for 2s to unlock all buttons
• Version Info Display:
  • With the device turned off, press and hold the up and down buttons for 2s.
• Factory Reset:
  • While version information is displayed, press the up, down, and fire buttons simultaneously.
• Screen Standby:
  • The device automatically enters standby mode after 10s of inactivity, and deactivates the screen.
• Prompts:
  • 10s Timeout: output is over 10s
  • Low Battery: voltage under 3.2V – recharge necessary
  • High Temperature: device temperature over 65°C before use or over 80°C during use
  • Resistance: user prompted to confirm when coil resistance change is detected
  • No Atomizer: press the fire button without a coil detected
  • Atomizer Short: if the coil resistance is too low, or the atomizer has short circuited
  • Locked: after locking parameter adjustments or the fire button
  • Unlock: after unlocking the fire button or all buttons
