Description

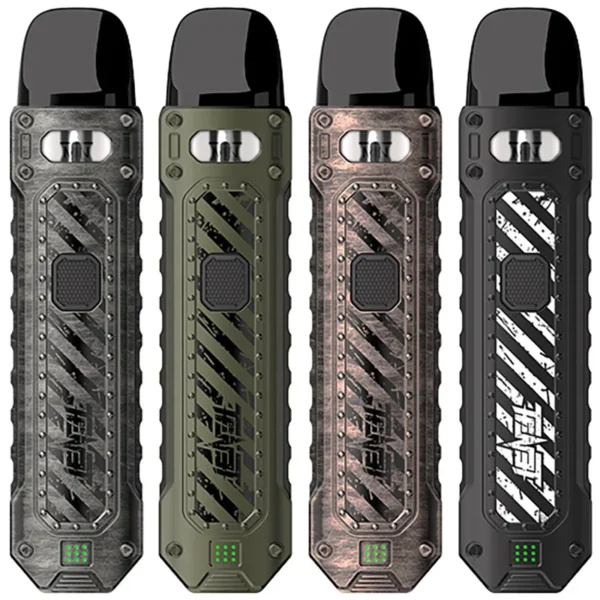

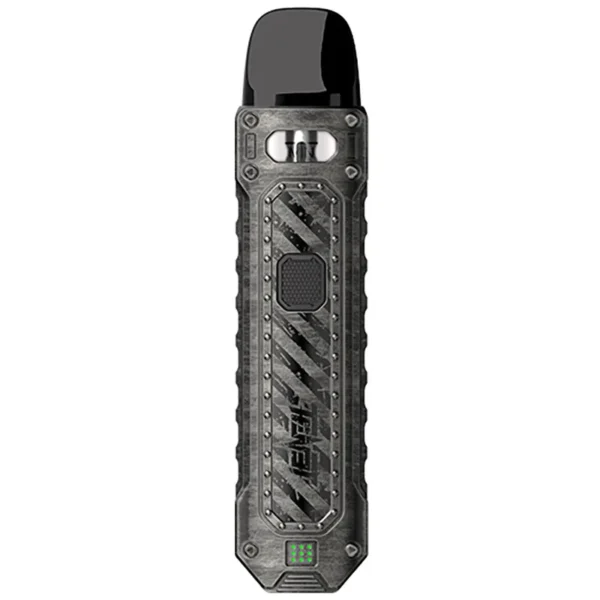

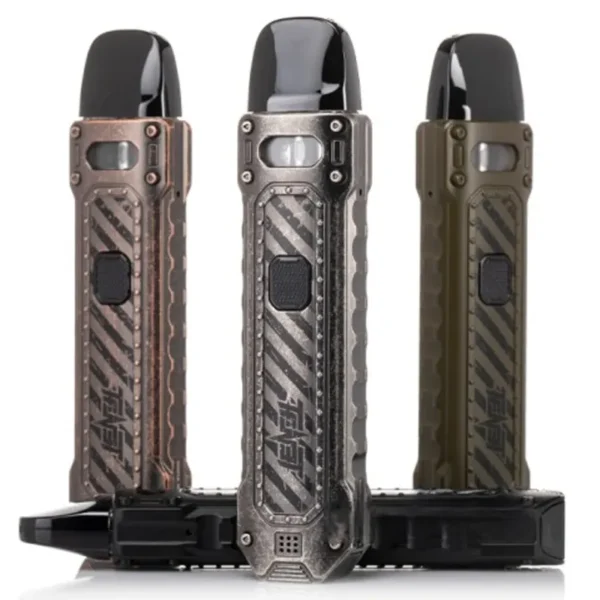

The Uwell Caliburn Tenet is the latest evolution in the popular series of open devices, featuring a futuristic metal body and compatibility with the G2 pod series featuring leak proof top fill and airflow control. The Caliburn Tenet also includes haptic feedback that confirms pod connection, and alerts to low battery. An LED at the base of the device changes color to indicate the remaining battery level, while in use or charging.

Uwell Caliburn Tenet Features:

• Dimensions: 110.9 * 25.1 * 16.3mm
• Weight: 50.4g
• Battery Capacity: 750mAh
• Charging Rate: 5V/2A
• Power Output: Up to 16W (fixed)
• Pod Compatibility: Caliburn G2 (CRC)
  • E-Liquid Capacity: 1.6mL
  • Spring Loaded Top Fill
  • Airflow Control Wheel
• Firing Type: Dual (optional)
  • Intuitive Draw Activation
  • Firing Button (double click disable/enable)

Uwell Caliburn Tenet FAQ:

1. How to fill pod:
   • Press against the side of the mouthpiece to disconnect it from the pod.
   • Press e-liquid bottle tip into the the red fill port to depress the spring, and squeeze the bottle to fill the pod.
   • Replace the mouthpiece, and remove the pod from the device.
   • Remove protective insulation from the bottom of the pod, and replace in the device.
   • Wait 5 minutes for atomizer to saturate.
2. How to turn device on/off:
   • Press firing button 5 times within 2 seconds. The LED indicator will flash green 3 times to confirm.
3. How to use:
   • With the device powered on, draw through the mouthpiece or press the firing button (when enabled) to automatically fire the atomizer.
4. Button firing lock:
   • Press the firing button twice within 2 seconds to lock/unlock the option of button firing the atomizer. The LED will flash white 3 times to confirm.
5. Battery level indication:
   • While vaping:
     • Green Flash: > 60% battery charge
     • Blue Flash: > 30% battery charge
     • Red Flash: < 30% battery charge
     • 10x Red Flash + 3x Vibration: battery charge too low
   • While charging:
     • Connection: Light Active + 2x Vibration
     • Red Light: Low battery charge
     • Blue Light: Medium battery charge
     • Green Light: Sufficient battery charge
     • Solid Green Light + 1x Vibration: Fully charged
6. Protections:
   • Short Circuit: 3x Red Flash + 3x Vibration
   • Low Voltage: Output stops
   • Overtime (> 8 sec): 5x Green Flash + 2x Vibration
   • Open Circuit: 3x Blue Flash + 2x Vibration
